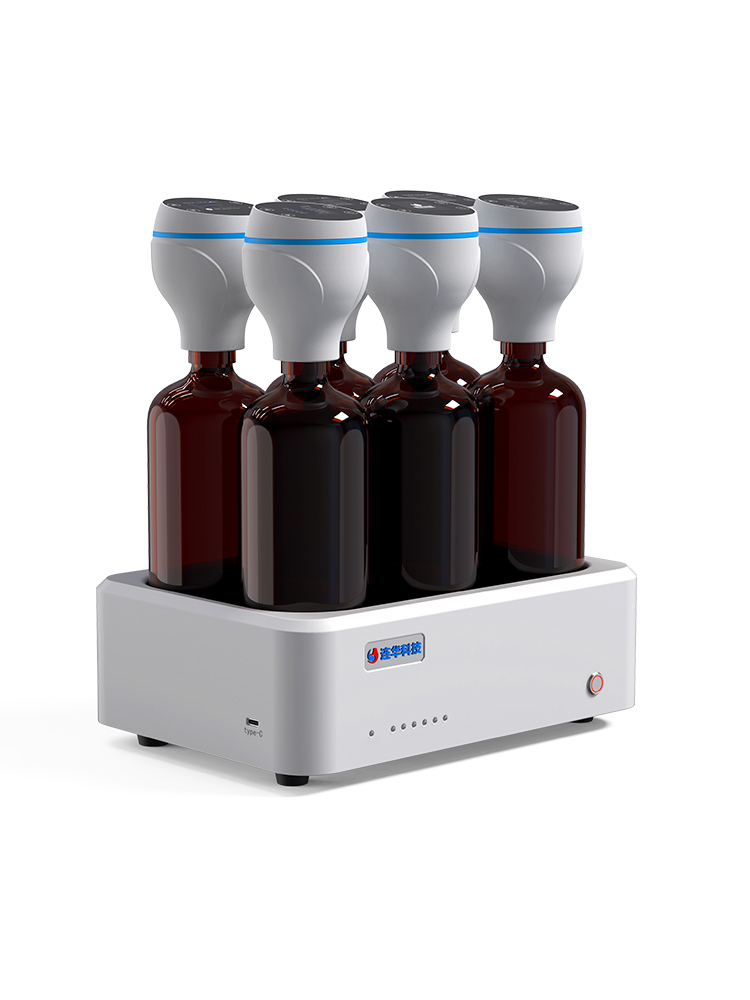

Biochemical Oxygen Demand (BOD5) Meter
LH-BOD306
1, Instrument Introduction
This instrument is a brand new instrument for measuring BOD in water based on manometric method. It can independently detect bottle caps and simulate the reaction process of the standard HJ505-2009. It is manufactured according to the international standard ISO9408-1999 and is particularly suitable for detecting water quality BOD indicators, selecting water treatment processes, and simulating water treatment processes. Support 1-30 day’s result.
2, Functional Features
1) The testing time is flexible and controllable, with options for 1-30 days of testing time and 1-10 hours of constant temperature waiting time;
2) Each test cap can be individually set with sample parameters, and a single test cap can record 100 historical records, automatically overwriting old data;
3) Support 1-6 sample detection, using a microprocessor control system to automatically complete the measurement process without the need for dedicated personnel supervision, Independent timing;
4) Range 0-4000mg/L, supports 8 range sampling options, detects concentration through direct reading, displays BOD value directly without conversion, and achieves more accurate low range measurements with hardware upgrades;
5) The test cap is equipped with a CR-P2 battery and a 1.5-inch OLED screen, which can run independently. It supports viewing detection data, data curve graphs, and other information. A brief power outage on the host has no impact on the test;
6) The host base comes with a 6-unit electromagnetic stirring function to ensure even distribution of samples during the experiment, making the detection results more accurate;
7) The host is pre-set with 7 indicator lights, which can visually view the power supply and electromagnetic stirring operation status;
8) Compliant with the national standard HJ505-2009 reaction process, manufactured based on ISO9408-1999, using a mercury free differential pressure method, with no mercury pollution and accurate and reliable data;
3, Technical Parameter
Product name Biochemical Oxygen Demand (BOD5) Meter
Model: LH-BOD306
Standard basis : Complies with the reaction process of the national standard HJ505-2009 and is manufactured based on ISO9408-1999
Display resolution: 0.1mg/L<10mg/L;1mg/L≥10mg/L
Measurement range:（0-4000）mg/L
Accuracy of pressure measurement:: ±2.5%
Result recording frequency: 1 hour
Measurement accuracy: ±10%
Air tightness: <0.1kpa/15min
Measurement cycle: 1-30 days
Measured data : 6
Bottle capacity: 580mL
Store data: 100
Cultivation temperature: 20±1℃
Rated power: 30W
Power configuration:（100-240）V/（50-60）Hz
Instrument weight: 2.6kg
Ambient temperature: (5-40)℃
Ambient humidity: ≤85RH(No condensation)
Instrument size: Stirrer:(280×206×97.5)mm；Full set: (280×206×324)mm
